Architectural Metal Siding Panels
video

Architectural Metal Siding Panels

Thickness: 9mm, 14mm, 16mm, 20mm, 25mm, 30mm.
Width: 383mm
Length: Can be customized
GSM: 2300-3200g/m²
Send Inquiry

Description

Technical Parameters

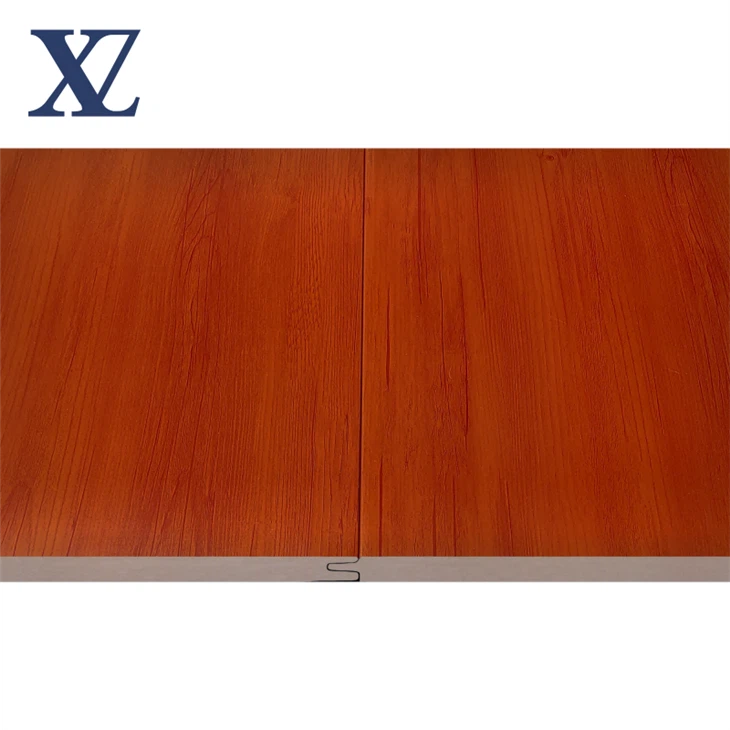

Architectural Metal Siding Panels wholesale4

Architectural Metal Siding Panels are a new type of decorative material, which adopts a multi-layer structure and is composed of aluminum alloy or steel plate, thermal insulation material, and thermal insulation material layer. It has great advantages over traditional building decoration materials in terms of color, shape, and service life, so it has been used more and more.

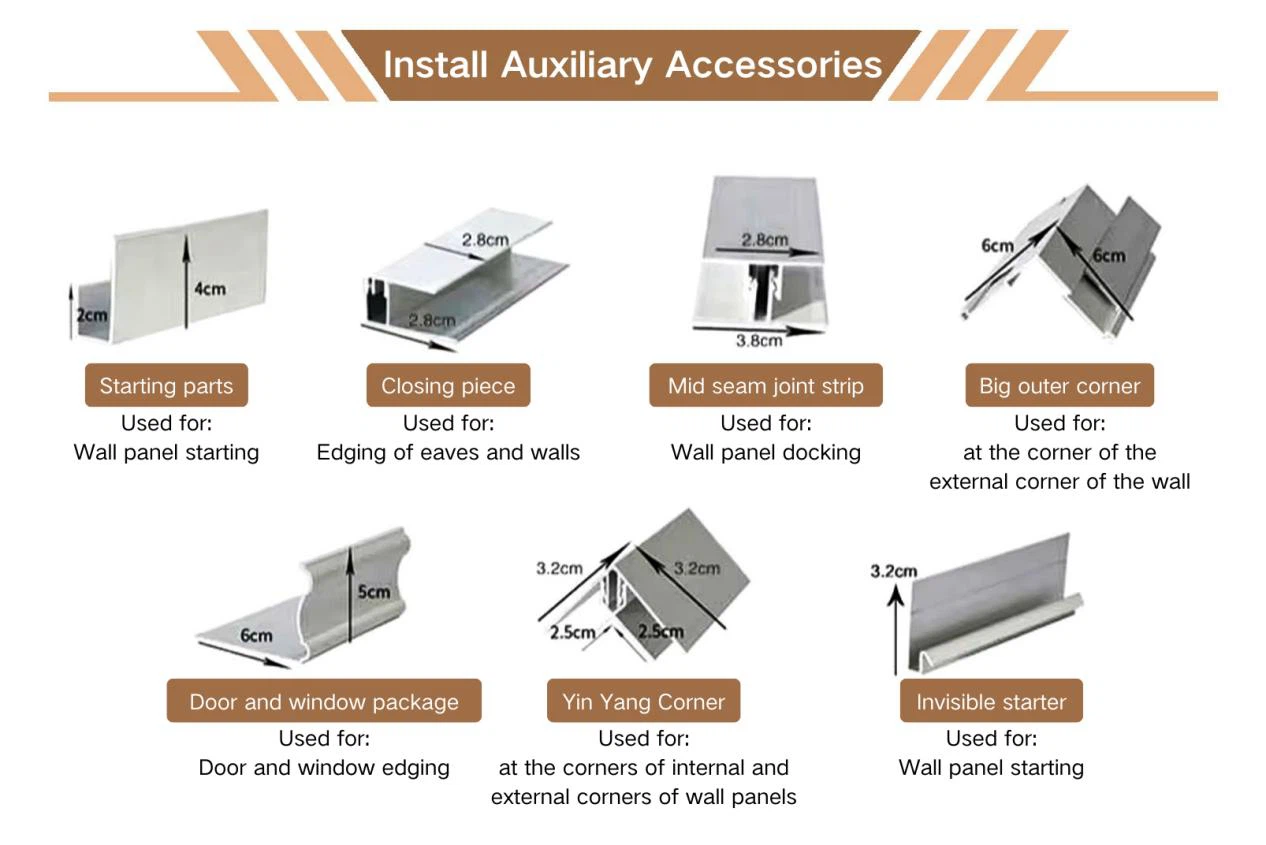

product-1266-845

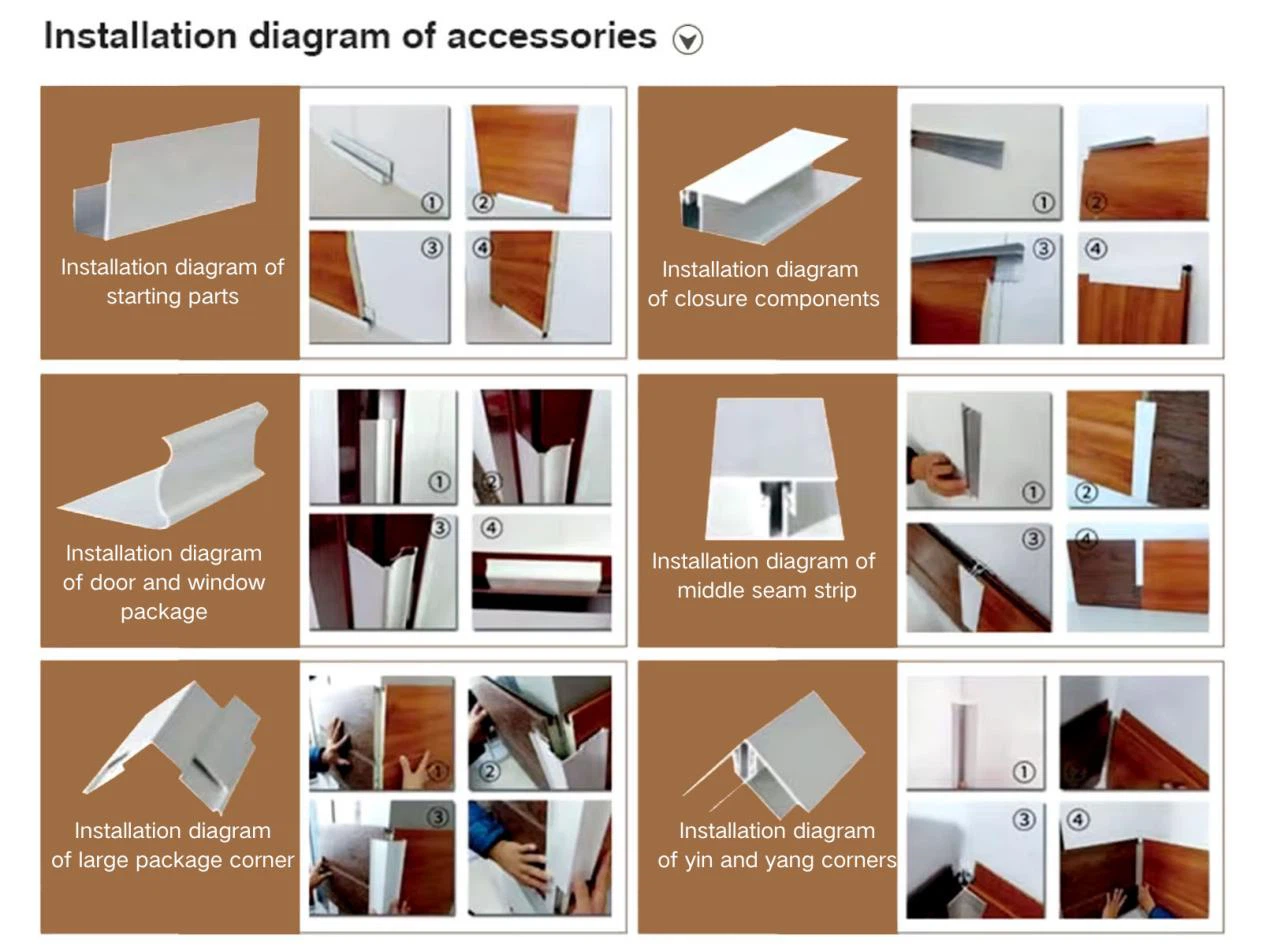

product-1266-946



It is widely use in many fields like the following



product-1266-703



Feature of sandwich panel



Easy installation :
Architectural metal siding panels are Lightweight and small in size, the weight per square meter is 3.7 kilograms. Not restricted by seasonal climate and geographical environment, saving costs.
Good performance:
The metal sandwich board is waterproof, moisture-proof, earthquake-proof, crack-proof, heat insulation, fire and sound insulation.

High insulation value, low energy consumption;
Easy to install, reduce cost ;
Lightweight & High hardness, earthquake proof;
Thermal and Sound insulation & inflaming retarding.

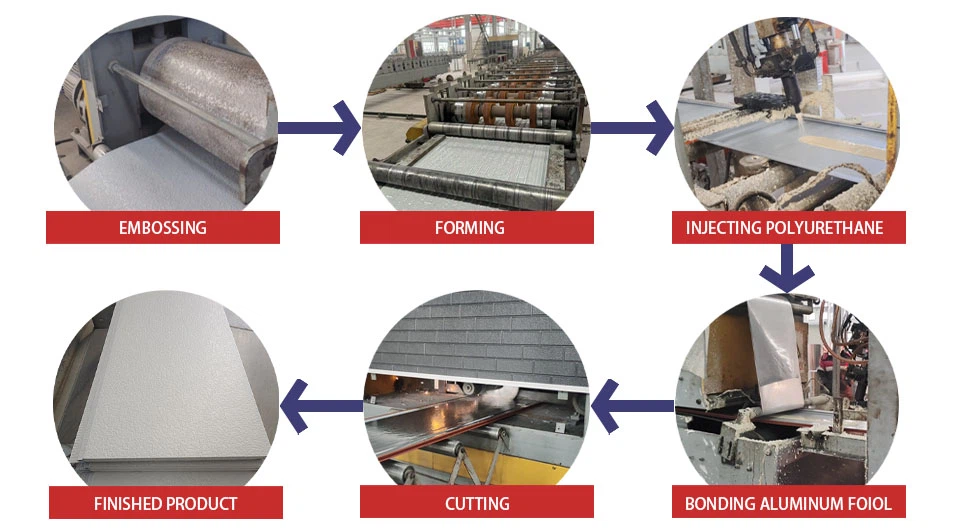

Production of architectural metal siding panels



product-954-530

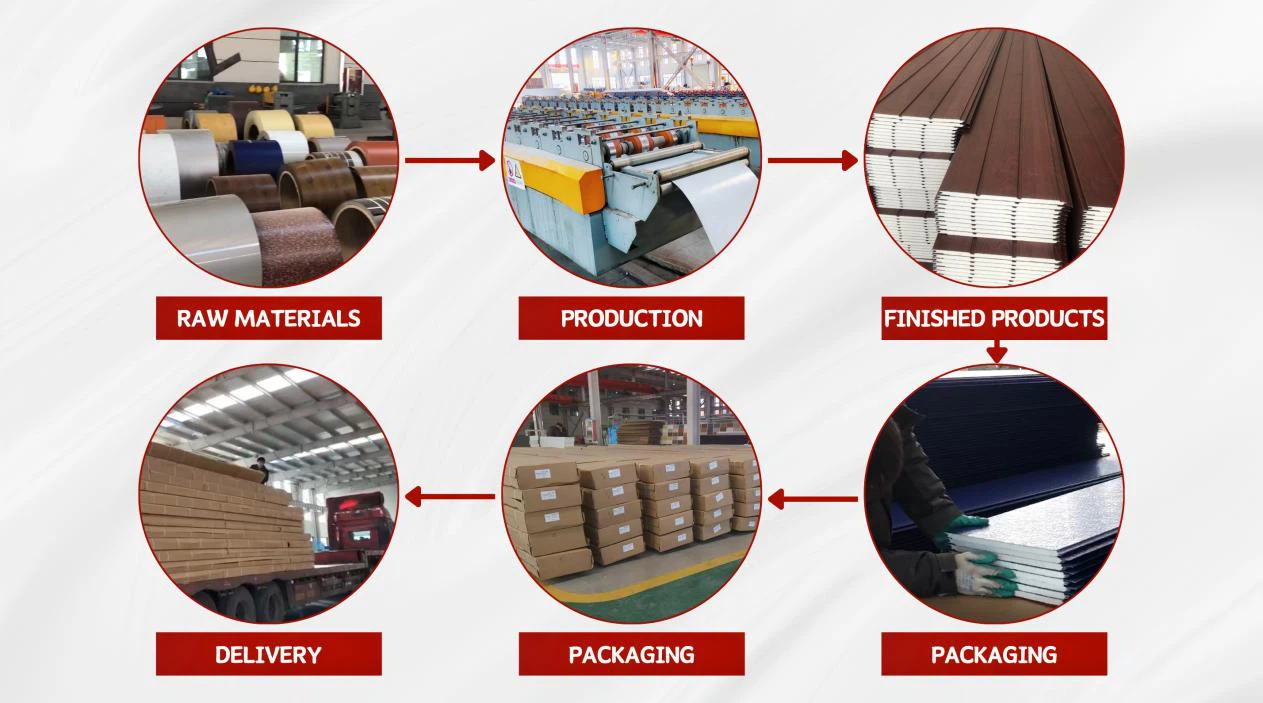

Packing & Shipping



product-1263-703



FAQ



Q: Are you a manufacturer or a trading company?

A: As a leading manufacturer, Xinzhong has been specializing in high-quality building products (metal sandwich boards).

Q: How to install your product?

A: Easy. Screw the decorative outdoor wall panel onto a steel/wooden frame, then apply the accessories to the corner/connecting areas. Done.

Q: Can I get free sample?

A: Sure. We supply free samples, you only need to pay the courier fee.

Q: Do you accept small orders?

A: Yes. If you are a builder or small retailer, or starting up a business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long-term relationship.

Hot Tags: architectural metal siding panels, China architectural metal siding panels manufacturers, suppliers, factory, Decorative Exterior Insulation Panels, Fire Resistant Foam Board, Metal Sandwich Panel Wall, Prefab Insulated Interior Wall Panels, PU Interior Wall Panel, PU Polyurethane Sandwich Panel

Product name

Architectural Metal Siding Panels

Thickness

9mm, 14mm, 16mm, 20mm, 25mm, 30mm

Width

38.3cm

Length

Based on user requirements

Surface layer

Galvanized steel sheet

Steel coating

HDP, >30µm

Core materials

Polyurethane, 42kg/m³

Closed cell rate

>95%

Bottom material

Aluminum foil

Thickness of bottom material

0.26mm

R-VALUE

0.55㎡*k/w

Heat conductivity

0.024w/m*k(in theory)

Certificate

ISO9001,CE

Fire resistance level

B1/B2

Size tolerance

=/-2mm

Tensile bond strength

0.17MPA

Wind load value

9KPA

Package

corrugated box, 10 pieces/carton

Brand

Xinzhong
