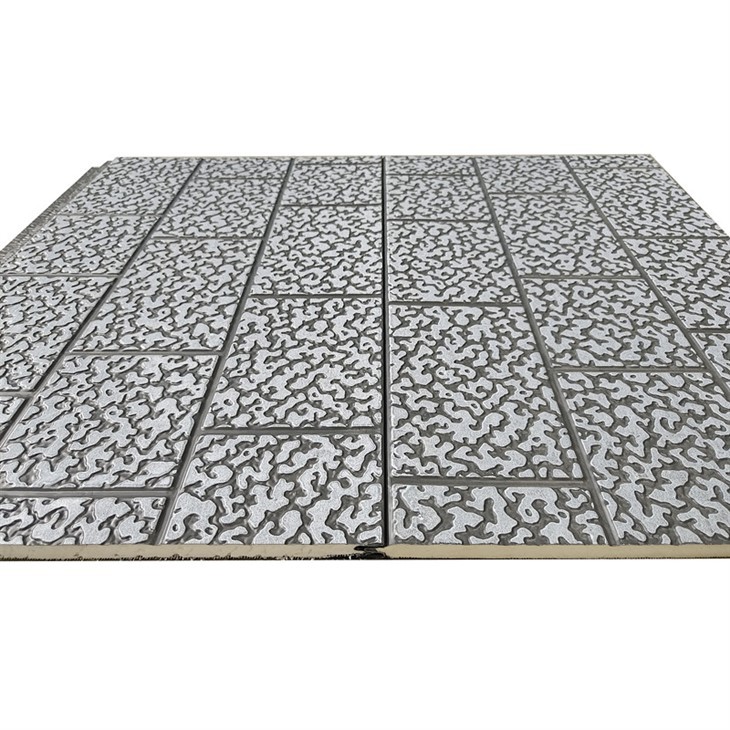

Polyurethane Foam Sandwich Panel
Width: 383mm
Length:Can be customized
GSM:2600-5100g/m²
Pattern: Contact us for catalogue.
Description
Technical Parameters
Polyurethane foam sandwich panel with hundreds of patterns and color combinations, you can contact us for more style choices.
It is widely use in many fields like the following
Polyurethane foam sandwich panel is widely used in all kinds of industrial plants, civil buildings and public buildings and other steel structure building wall enclosure
Production of polyurethane foam sandwich panel
Packing & Shipping
FAQ
Hot Tags: polyurethane foam sandwich panel, China polyurethane foam sandwich panel manufacturers, suppliers, factory, Aluminium Insulated Sandwich Panels, Decorative Exterior Insulation Panels, Prefab Insulated Interior Wall Panels, PU Foam Decorative Metal Wall Panel, sandwich wall panel, Thermal Wall Panels
|
Product name |
Polyurethane foam sandwich panel |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
1-6000mm |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Package size |
Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton) |
|
Container load |
20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m). |
|
Warranty |
＞5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
|
Brand |
Xinzhong |
