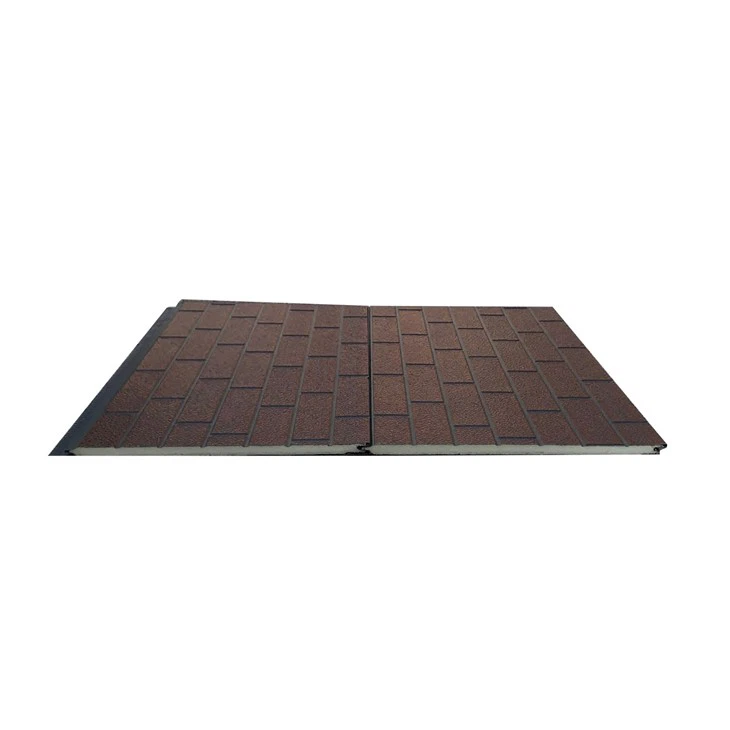

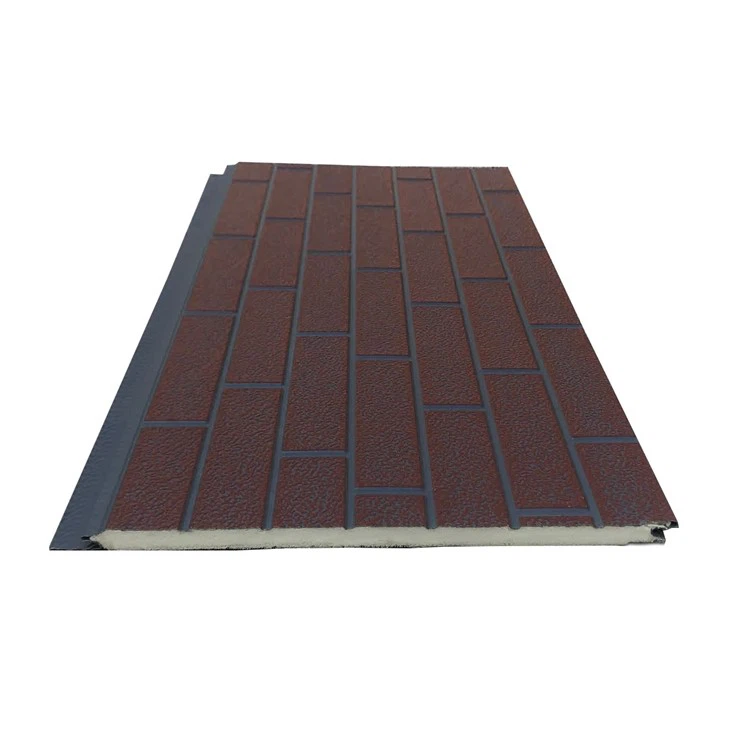

Outdoor Insulated Wall Panels
Width: 383mm
Length:Can be customized
GSM:2600-5100g/m²
Pattern: Contact us for catalogue.
Description
Technical Parameters
Outdoor insulated wall panels can prevent the spread of flame in the early stage of fire, with stability and safety.
It is widely use in many fields like the following
Due to its excellent thermal insulation properties, outdoor insulated wall panels are often used in the construction of cold storage to ensure the storage conditions of refrigerated items.

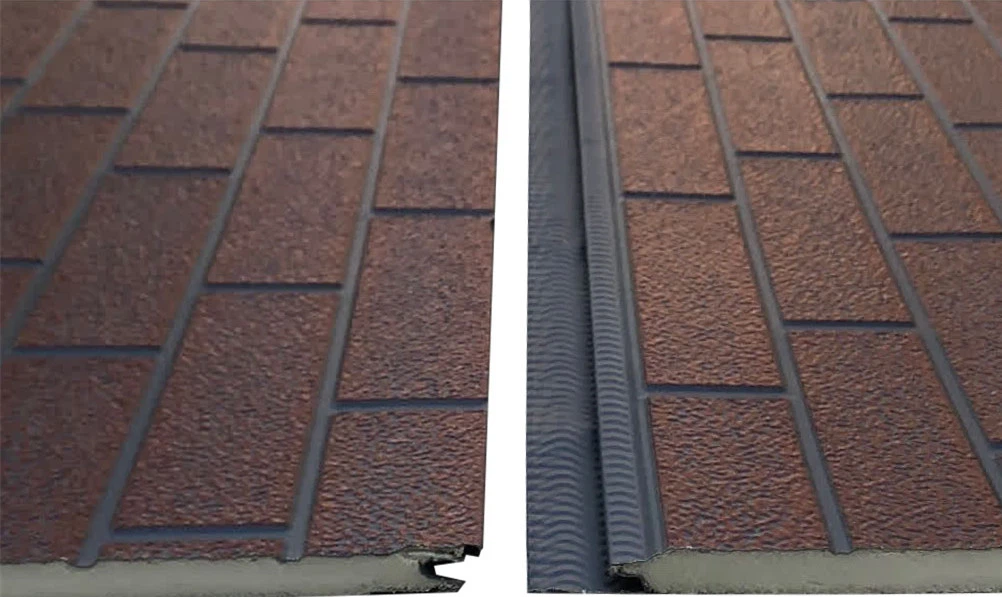

Production of outdoor insulated wall panels
Why choose us?
Packing & Shipping
FAQ
Hot Tags: outdoor insulated wall panels, China outdoor insulated wall panels manufacturers, suppliers, factory, Architectural Metal Siding Panels, Insulated Metal Sandwich Panel, Prefab Insulated Interior Wall Panels, PU Interior Wall Panel, Soundproof PU Sandwich Panels, Wood Look PU Sandwich Panel
|
Product name |
Outdoor insulated wall panels |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
1-6000mm |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Package size |
Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton) |
|
Container load |
20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m). |
|
Warranty |
＞5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
|
Brand |
Xinzhong |
