Exterior Insulation Wall Panels
video

Exterior Insulation Wall Panels

Thickness: 9mm, 14mm, 16mm, 20mm, 25mm, 30mm.
Width: 383mm
Length: Can be customized
GSM: 2300-3200g/m²
Send Inquiry

Description

Technical Parameters

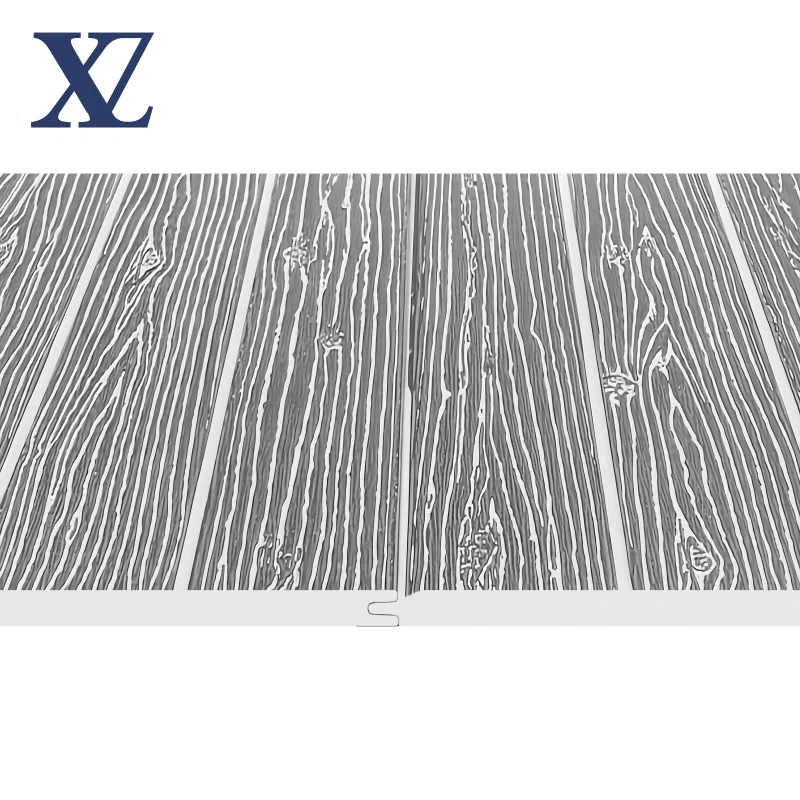

Exterior Insulation Wall Panels wholesale4

Exterior insulation wall panels are a kind of decorative material with beautiful appearance, smooth and highly personalized. It is machined from metal material and then carved with various unique designs and patterns using roller tools. It can be used for both interior decoration and exterior decoration of buildings.

product-1266-845

1. Select a suitable wall surface: The installation of exterior insulation wall panels needs to choose a suitable wall surface. The wall surface should be flat and firm, and there should be no problems such as peeling paint, hollow wall surface, or cracking.

2. Installation method: There are many ways to install modern wood grain cladding, such as using hanging parts, screen frames or directly glued to the wall. When choosing the installation method, it should be determined according to the wall condition and the weight of the modern wood grain cladding.

3. Careful measurement: When installing modern wood grain cladding, it is necessary to carefully measure the size of the wall space and the size of the modern wood grain cladding to ensure that the carved panels can be well connected with the surrounding walls, so as to achieve the best aesthetic effect.

product-1266-946



It is widely use in many fields like the following



product-1266-703



Feature of sandwich panel



1. Beautiful: Modern wood grain cladding have a unique pattern design and high-quality surface treatment, which can add beautiful visual effects to buildings and improve the decoration quality of the entire room.

2. Durable: Modern wood grain cladding material is extremely durable, can resist wear and corrosion in daily use, reduces the frequency of maintenance and replacement, and greatly prolongs the service life.

3. Safety: The material structure of Modern wood grain cladding is stable and will not rot, deform or crack. At the same time, the use is highly environmentally friendly and will not cause harm to the human body.

4. Fire prevention: Modern wood grain cladding has good fire resistance, can prevent fire from spreading in a short time, and has a certain fire protection effect.



Production of PU sandwich panel



product-954-530



Packing & Shipping



product-1263-703



FAQ



Q: Are you manufacturer?

A: Yes, we are.

Q: Can you produce according to my requirement?

A: Yes, all the design, size, printing and packaging can be done according to customer's request. About any further detail, please feel free to contact us.

Q: Do you offer free samples?

A: Sure,we are glad to send you free samples for your reference . But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.

Q: What's your MOQ?

A: We can accept smaller quantities if the warehouse has the right stock size.

Hot Tags: exterior insulation wall panels, China exterior insulation wall panels manufacturers, suppliers, factory, Corrugated Roof Sandwich Panel, Fire Resistant Foam Board, House Exterior Decorative Panels, Insulated Metal Sandwich Panel, Outside Insulated Wall Panel, Sound Proof Sandwich Wall Panel

Product name

Exterior Insulation Wall Panels

Thickness

9mm, 14mm, 16mm, 20mm, 25mm, 30mm

Width

38.3cm

Length

Based on user requirements

Surface layer

Galvanized steel sheet

Steel coating

HDP, >30µm

Core materials

Polyurethane, 42kg/m³

Closed cell rate

>95%

Bottom material

Aluminum foil

Thickness of bottom material

0.26mm

R-VALUE

0.55㎡*k/w

Heat conductivity

0.024w/m*k(in theory)

Certificate

ISO9001,CE

Fire resistance level

B1/B2

Size tolerance

=/-2mm

Tensile bond strength

0.17MPA

Wind load value

9KPA

Package

corrugated box, 10 pieces/carton

Package size

Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton)

Container load

20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m).

Warranty

>5years

After-sale service

Respond quickly, communicate patiently, proactively solve problems and provide technical support.

Port of loading

Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou.

Brand

Xinzhong
