Description
Technical Parameters

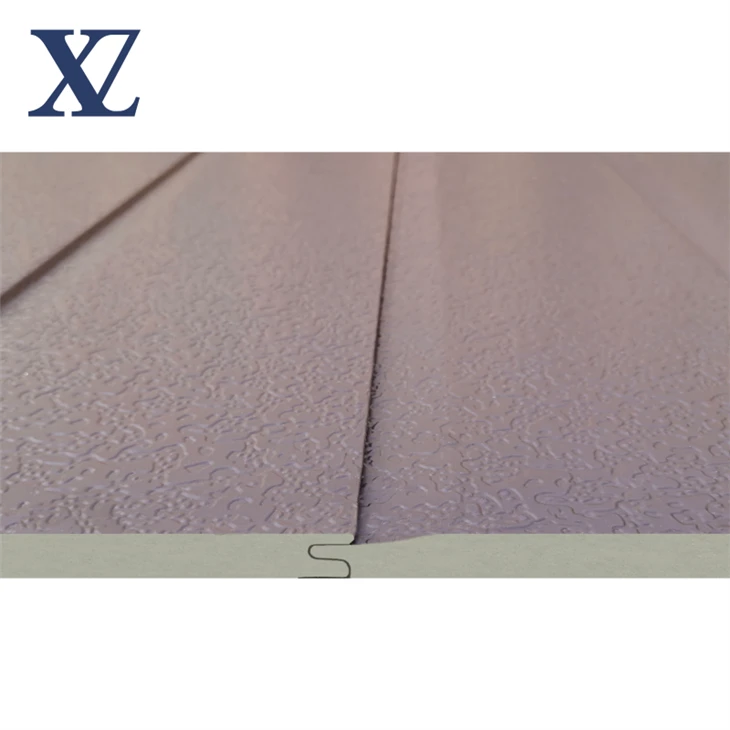

Colored corrugated metal siding is a material used for exterior building wall decoration, primarily made of foam plastic. It offers advantages such as lightweight, thermal insulation, soundproofing, and waterproofing. Foam Exterior Wall Cladding typically features a modern appearance with a variety of color options to meet different building decoration needs. Additionally, it is easy to install and maintain, which can save labor and time costs.


Installing Metal Sandwich Board is very simple and can be fixed with corner codes and screws or adhesives. When installing, attention should be paid to the flatness and levelness of the panel to ensure the display effect. Professional tools and installation materials should be used to ensure installation quality and safety.
It is widely use in many fields like the following

Feature of sandwich panel
- PU sandwich panel has excellent insulation effect, warm in winter and cool in summer.
- Sound insulation effect is good, convenient life.
- The highest fire rating is B1.
- Light weight, rigid,strong and long time durable.
- Waterproof, moisture resistance,excellent weather ability.
- Chemical resistance, anti-impact,fade resistance.
- Environmental friendly,recyclable,washable,non-toxic.
- Easy to fabricate,custom-made cut shape.
- Capacity: 500000 square meters per month; Prompt delivery; Factory Direct Selling.
Production of PU sandwich panel

Packing & Shipping
Packaging and Transportation
The wall panel is usually packaged in paper boxes to protect the panel from damage. During transportation, attention should be paid to avoid collision and compression. Suitable cushioning and packaging materials should be used to ensure the integrity and safety of the panel.
Storage
The wall panel should be stored in a dry, ventilated, light-proof, and moisture-proof place, avoiding direct sunlight and high temperatures. During storage, attention should be paid to avoid deformation or damage to the panel due to pressure or collision. Special brackets or shelves can be used for storage to avoid pressure on the panel. If long-term storage is required, moisture-proof agents and light-proof fabrics can be used for protection.

FAQ
Hot Tags: colored corrugated metal siding, China colored corrugated metal siding manufacturers, suppliers, factory, Colored Corrugated Metal Siding, Exterior Decorative Sandwich Panels, Exterior Foam Insulation Panels, Insulated Sandwich Wall Panels, PU Foam Sandwich Panels, PU Polyurethane Sandwich Panel
|
Product name |
Colored Corrugated Metal Siding |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
Based on user requirements |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
