Flame Resistant PU Panel
video

Flame Resistant PU Panel

Thickness: 9mm, 14mm, 16mm, 20mm, 25mm, 30mm.
Width: 383mm
Length: Can be customized
GSM: 2300-3200g/m²
Send Inquiry

Description

Technical Parameters

Fireproof Insulation Panels wholesale4

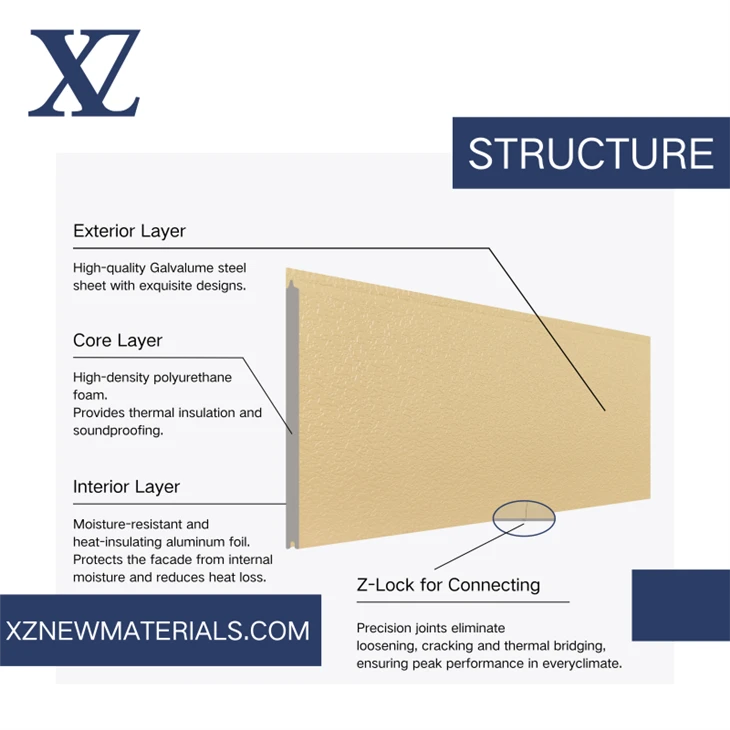

Flame resistant PU panel is a new building material, that has a lot of advantages, outsiders think its color variety, can meet the different needs of consumers; Thermal insulation decorative board, also known as thermal insulation and decoration integrated product board, is composed of an adhesive layer, thermal insulation decorative product board, anchoring parts, sealing materials and so on.

product-1266-845

product-1266-946



It is widely use in many fields like the following



product-1266-703



Feature of sandwich panel



1. Strong adaptability to the deformation of the main structure, good crack resistance and deformation resistance. It has stable chemical properties, long service life, and does not pollute the surrounding environment; it is self-extinguishing when away from an open flame, and it only carbonizes without dripping when burning, and the size and shape of the carbonized layer basically remain unchanged, which can effectively block the entry of air and prevent the spread of fire. Good fire safety performance.

2. Strong durability and long service life. The polyurethane material of vertical metal siding panels has a stable porosity structure and is basically a closed-cell structure, which not only has excellent thermal insulation performance, but also has good freeze-thaw resistance and sound absorption. The various components of the rigid polyurethane foam external insulation system have chemical and physical stability.

3. Good environmental performance. The vertical metal siding panels used in the external insulation system of the external wall is a kind of thermal insulation material with high chemical stability, which has excellent acid resistance, alkali resistance and heat resistance, does not produce harmful gases, does not cause harm to the environment, and is environmentally friendly Organic insulation.



Production of PU sandwich panel



product-954-530



Packing & Shipping



product-1263-703



FAQ



Q: Are you trading company or factory? Can we visit your factory?

A: We have our own trading company and factory. Yes, warmly welcome to our factory.

Q: What's your MOQ:

A: Stock products: 1 m². Producing products: from 100 m².

Q: How long is your delivery time?

A: Standard products: 1~5 days. Customized products: 5-15 days.

Q: How do you guarantee the quality?

A: Each product has strict testing procedures (from raw material selecting, manufacturing, quality checking, packing, and loading, etc.), and must be 100% quality checked before delivery.

Hot Tags: flame resistant pu panel, China flame resistant pu panel manufacturers, suppliers, factory, Aluminum Foam Sandwich Panels, Decorative Thermal Insulation Panels, Exterior House Cladding Panels, External Wall Sandwich Panel, PU Corrugated Sandwich Panel, Thermal Insulation Wall Panels

Product name

Flame Resistant PU Panel

Thickness

9mm, 14mm, 16mm, 20mm, 25mm, 30mm

Width

38.3cm

Length

Based on user requirements

Surface layer

Galvanized steel sheet

Steel coating

HDP, >30µm

Core materials

Polyurethane, 42kg/m³

Closed cell rate

>95%

Bottom material

Aluminum foil

Thickness of bottom material

0.26mm

R-VALUE

0.55㎡*k/w

Heat conductivity

0.024w/m*k(in theory)

Certificate

ISO9001,CE

Fire resistance level

B1/B2

Size tolerance

=/-2mm

Tensile bond strength

0.17MPA

Wind load value

9KPA

Package

corrugated box, 10 pieces/carton
