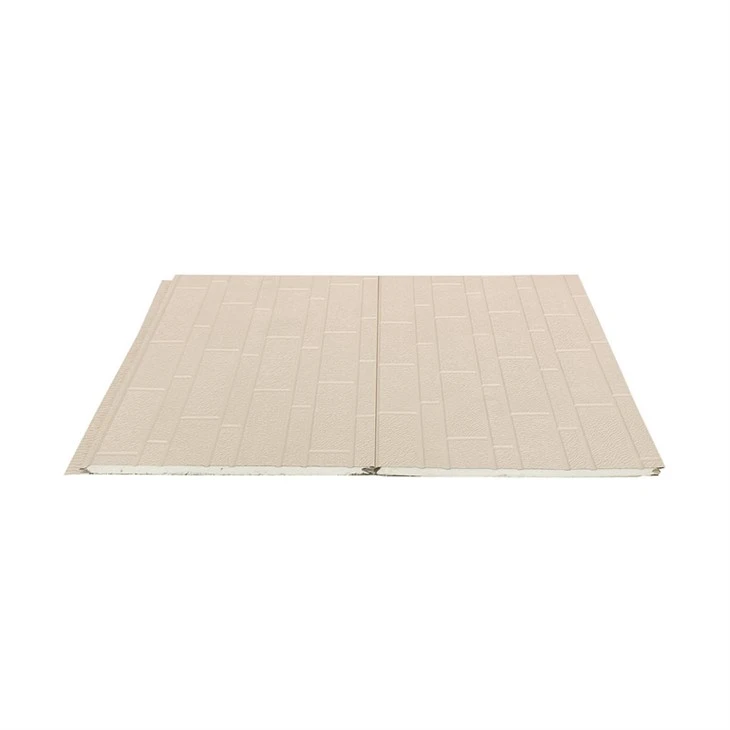

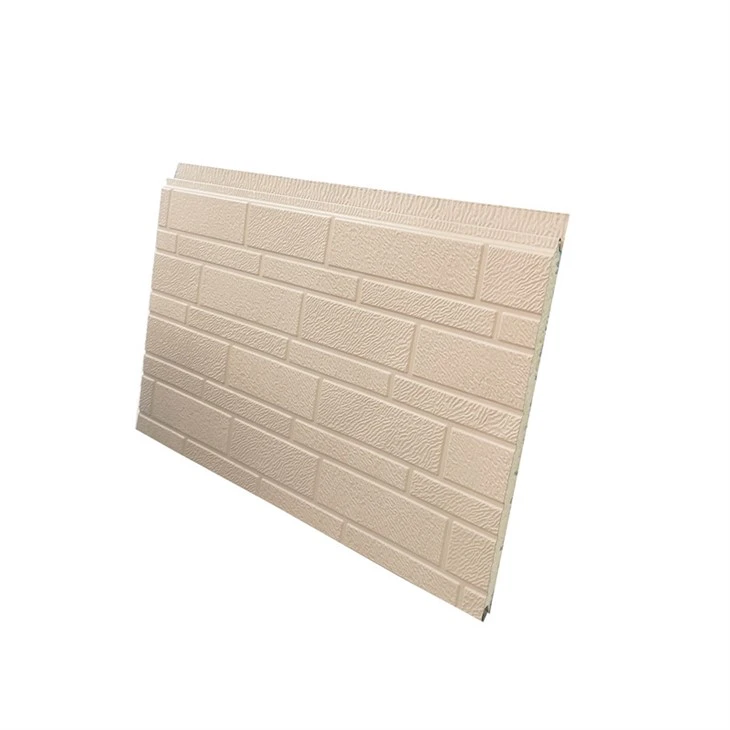

Insulated Sandwich Wall Panels
Width: 383mm
Length:Can be customized
GSM:2600-5100g/m²
Pattern: Contact us for catalogue.
Description
Technical Parameters
The installation method of insulated sandwich wall panels are simple and fast, and is not restricted by seasonal climate and geographical environment.
It is widely use in many fields like the following
Insulated sandwich wall panels is used in cold storage, refrigerator trucks, food processing plants and other need to maintain a stable low temperature environment. Its good tightness and excellent thermal insulation performance enable it to effectively reduce energy consumption and maintain low temperatures
Production of insulated sandwich wall panels
Packing & Shipping
FAQ
Hot Tags: insulated sandwich wall panels, China insulated sandwich wall panels manufacturers, suppliers, factory, Corrugated Roof Sandwich Panel, Corrugated Sandwich Panel, Decorative Insulated Interior Wall Panels, Exterior Decorative Sandwich Panels, PU Foam Decorative Metal Wall Panel, PU Sandwich Wall Panel
|
Product name |
Insulated sandwich wall panels |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
1-6000mm |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Package size |
Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton) |
|
Container load |
20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m). |
|
Warranty |
＞5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
|
Brand |
Xinzhong |
