Decorative Thermal Insulation Panels

Thickness:9mm,14mm, 16mm, 20mm, 25mm, 30mm.
Width: 383mm
Length:Can be customized
GSM:2600-5100g/m²
Pattern: Contact us for catalogue.

Send Inquiry

Description

Technical Parameters

decorative thermal insulation panels factory1

The decorative thermal insulation panels have strong pressure resistance, avoids structural damage caused by various weather conditions, and can extend the service life of the building.

product-1266-845

product-1266-946

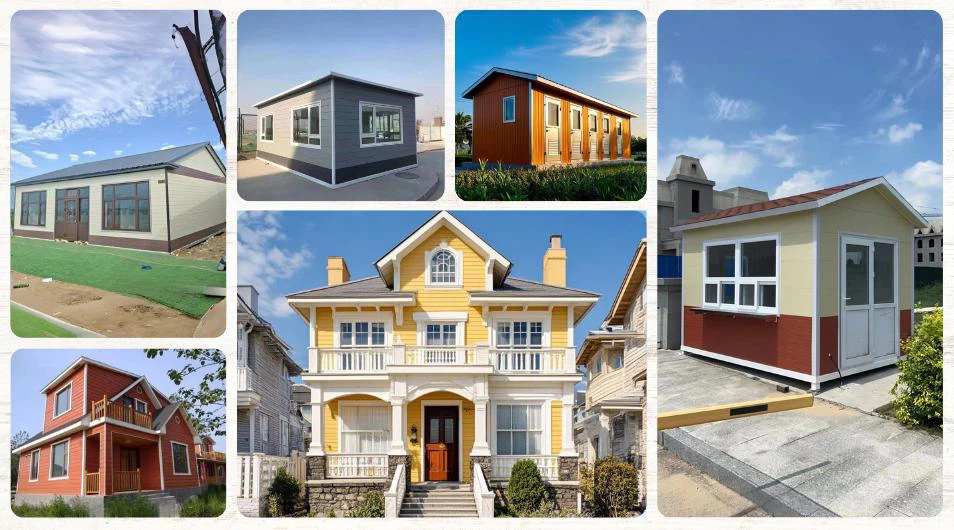

It is widely use in many fields like the following

In the construction of cold storage and greenhouses, Decorative thermal insulation panels can provide a stable temperature and humidity environment, ensuring the safe storage and growth of goods and crops.

product-954-530

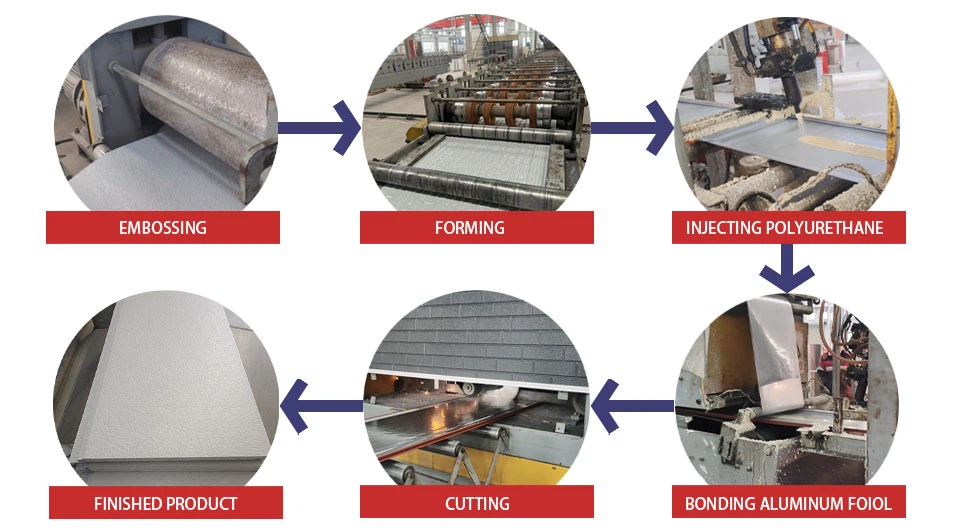

Production of decorative thermal insulation panels

product-954-530

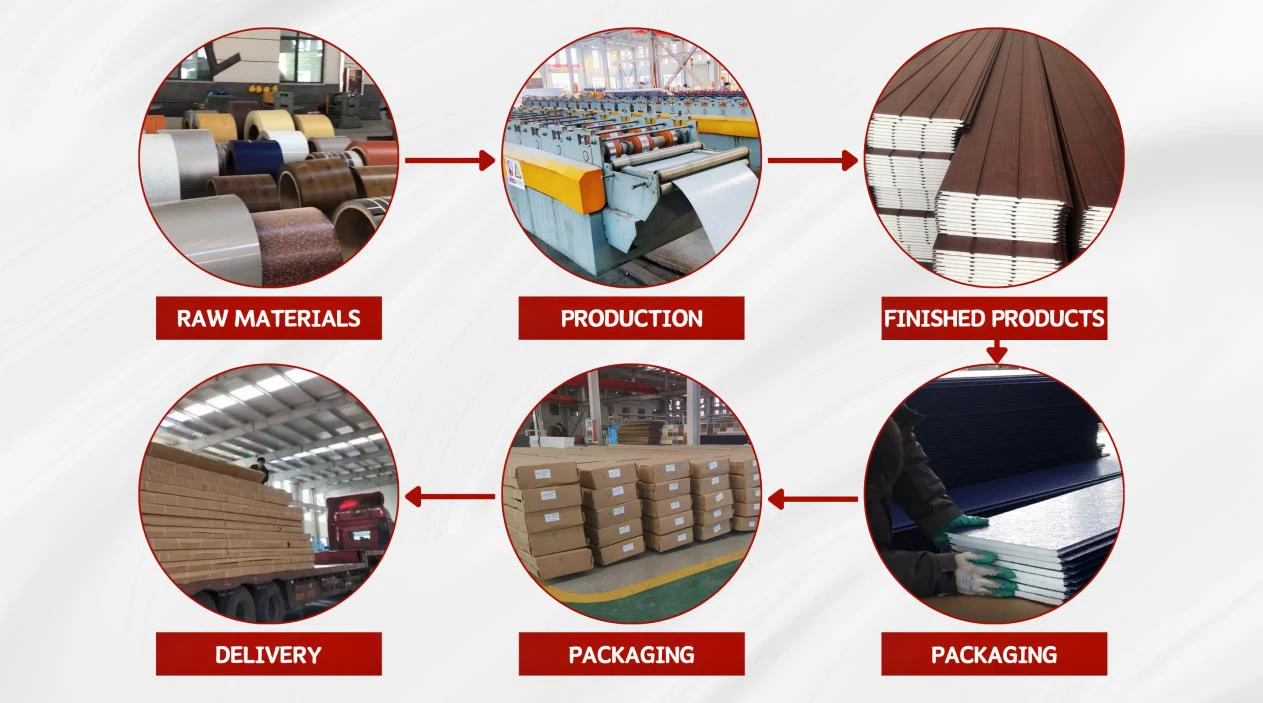

Packing & Shipping

product-1263-703

FAQ

Q: How long it lasts outside without bleaching?

A: The outer metal layer can not rust for 45 years, and the paint color can not fade for 15 years.

Q: How to install doors and windows?

A: Cut to the right length and connect with door and window bag accessories.

Q: Will water seep in rainy days?

A: The excellent self-structure and the compact concave-convex plug-in and buckle-groove installation method between the plates avoids the structural damage caused by the cycle of rain, snow, freezing, thawing, dry and wet, and eliminates the worry of water seepage on the wall after installation, effectively avoid the phenomenon of mold on the indoor wall.

Q: Is there sound insulation effect?

A: The core material in the middle is a thermal insulation and sound insulation layer composed of high-density polyurethane foam, and its interior is an independent closed cell structure, which has a good sound insulation effect.

Q: How long can it be stored?

A: As long as it is placed in a flat, dry and ventilated place, it can be stored for at least 50 years.

Hot Tags: decorative thermal insulation panels, China decorative thermal insulation panels manufacturers, suppliers, factory, Decorative Insulated Interior Wall Panels, Fireproof Insulation Panels, Insulated Metal Sandwich Panel, PU Foam Decorative Metal Wall Panel, pu sandwich panel, Thermal Insulation Sandwich Panel

Product name	Decorative thermal insulation panels
Thickness	9mm, 14mm, 16mm, 20mm, 25mm, 30mm
Width	38.3cm
Length	1-6000mm
Surface layer	Galvanized steel sheet
Steel coating	HDP, >30µm
Core materials	Polyurethane, 42kg/m³
Closed cell rate	>95%
Bottom material	Aluminum foil
Thickness of bottom material	0.26mm
R-VALUE	0.55㎡*k/w
Heat conductivity	0.024w/m*k(in theory)
Certificate	ISO9001,CE
Fire resistance level	B1/B2
Size tolerance	=/-2mm
Tensile bond strength	0.17MPA
Wind load value	9KPA
Package	corrugated box, 10 pieces/carton
Package size	Length(0-6m)Width42mmHeight(90mm-300mm), (10 pieces per carton)
Container load	20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m).
Warranty	＞5years
After-sale service	Respond quickly, communicate patiently, proactively solve problems and provide technical support.
Port of loading	Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou.
Brand	Xinzhong
