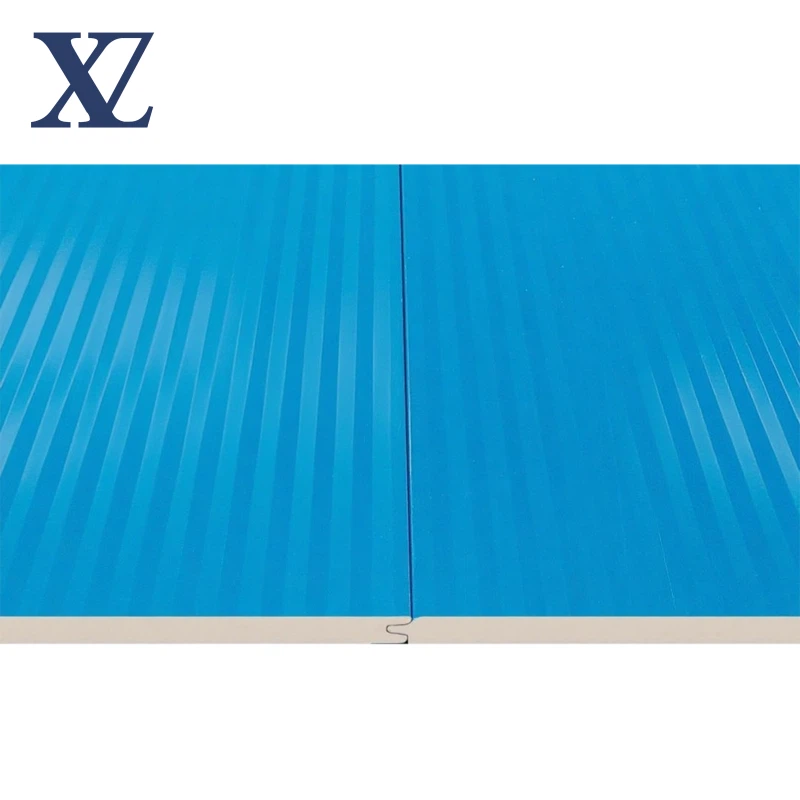

Thermal Insulation Sandwich Panel
Width: 383mm
Length: Can be customized
GSM: 2300-3200g/m²
Description
Technical Parameters
Thermal Insulation sandwich panel is a revolutionary product in the market as it offers both insulation and visually appealing design to enhance your buildings' façade. If you are a merchant looking for a premium-quality product that meets your customers' requirements, our metal carved insulated sandwich panel ticks all the boxes for you.
It is widely use in many fields like the following
Thermal Insulation sandwich panel is widely used, whether, in the agricultural field or municipal buildings, metal carved panels have played a huge role. Chicken coops, farmhouses, temporary houses in the fields and temporary parking houses in the industrial field, public toilets in the municipal construction field, street guard boxes, etc. are all made of metal carved panels as building materials.
Feature of sandwich panel
According to the measurement and fire test and other experimental data, it can be concluded that thermal insulation board siding has the following advantages:
Lightweight earthquake resistance: metal sidings are light and strong
Waterproof: The combination of steel sheet and polyurethane makes the sheet waterproof
Environmentally friendly and decorative: Green and pollution-free plate
Soundproofing Sheet: Has good soundproofing properties
Insulating flammable: polyurethane sandwich panels with class B fire protection

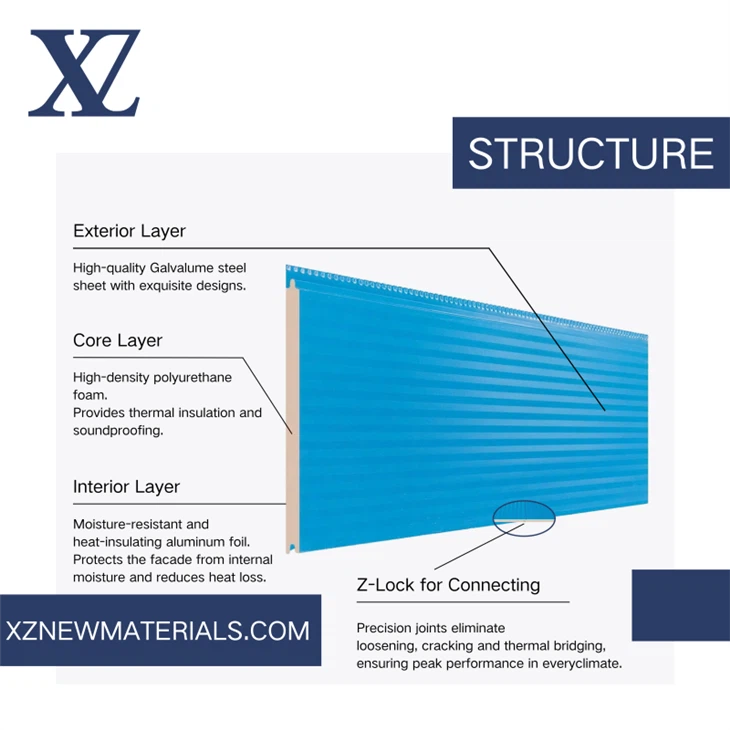

Production of PU sandwich panel
Packing & Shipping
FAQ
Hot Tags: thermal insulation sandwich panel, China thermal insulation sandwich panel manufacturers, suppliers, factory, Foam Exterior Wall Cladding, Insulated Sandwich Wall Panels, Metal Insulated Sandwich Panel, Mobile Home Sandwich Panels, PU Corrugated Sandwich Panel, Thermal Wall Panels
|
Product name |
Thermal Insulation sandwich panel |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
Customized according to your requirements |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Package size |
Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton) |
|
Container load |
20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m). |
|
Warranty |
＞5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
|
Brand |
Xinzhong |
