Description
Technical Parameters

Thermal wall panels is a versatile material that is widely used in a variety of applications, including insulation, cushioning, and packaging. PU foam is known for its excellent thermal insulation properties, making it a popular choice for use in construction and insulation applications.lt is also lightweight, durable, and can be easily customized to suit specific applications.


It is widely use in many fields like the following
Thermal wall panels with its excellent applicability and versatility, has become the preferred material in the field of modern construction. It is not only suitable for traditional buildings such as sentry booths, modern villas, light steel workshops, but also perfectly integrated into the transformation of building exterior walls, garbage sorting rooms, integrated houses and residential and other diverse scenes, showing its wide application prospects and unlimited creative possibilities.

Feature of sandwich panel
- Energy efficiency: Polyurethane sandwich panels have excellent thermal insulation properties, which can reduce heat transfer and improve the energy efficiency of buildings.
- High quality: Polyurethane sandwich panels are manufactured in a specific workshop environment, and the quality can be guaranteed to be completely consistent during their manufacturing process.
- Insulation function: Polyurethane foam plays a decisive role in the insulation function of sandwich panels, which can improve the thermal performance of buildings and reduce energy consumption. The higher the density, the better the insulation effect.
- Fire rating: Polyurethane sandwich panels can reach a fire rating of up to B1, which helps to improve the overall fire safety of buildings.
- Thermal wall panels: Thermal wall panels combine the strength and durability of metal with the insulation properties, providing a lightweight but strong building envelope option.

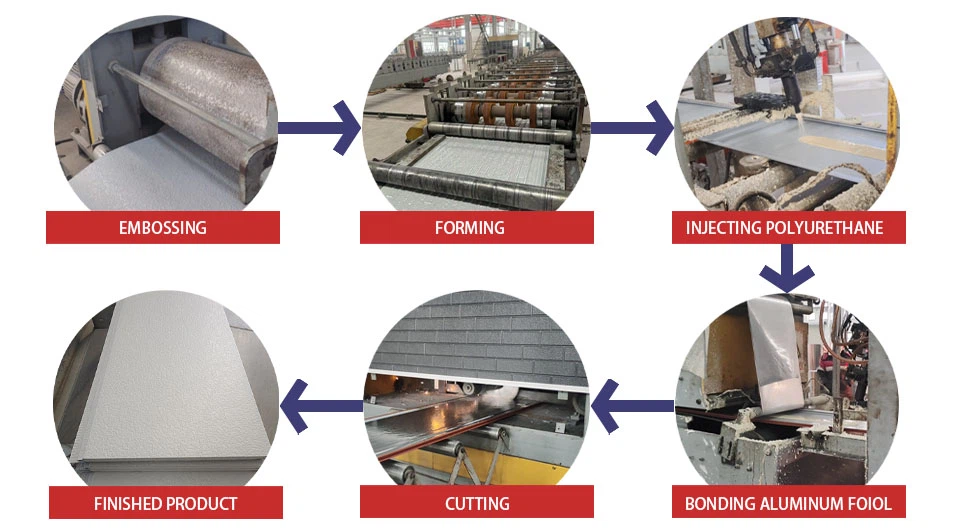

Production of PU sandwich panel

Packing & Shipping

FAQ
Hot Tags: thermal wall panels, China thermal wall panels manufacturers, suppliers, factory, Insulated Wall PU Sandwich Panel, Polyurethane Composite Board, PU Corrugated Sandwich Panel, PU Foam Insulation Panels, PU Interior Wall Panel, pu sandwich panel
|
Product name |
Thermal Wall Panels |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
Customized according to your requirements |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Installation |
Modular design to make the installation easy, efficient and cost-friendly |
|
Warranty |
>5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
