Description
Technical Parameters

Decorative exterior insulation panels are a kind of building material with high pressure resistance, earthquake resistance, moisture resistance, low thermal conductivity, beauty, durability, energy conservation, simple construction, environmental protection and other excellent performance, which can be widely used in the decoration and insulation of building exterior walls and interior decoration.


It is widely use in many fields like the following

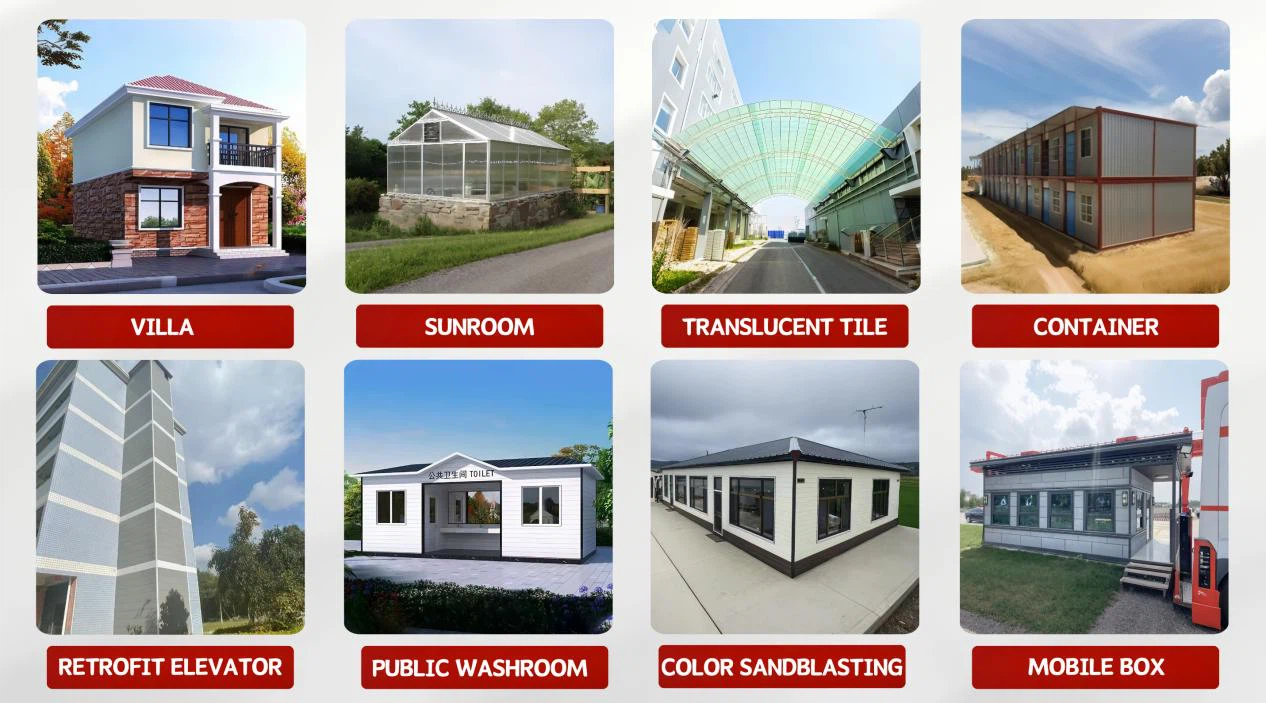

Decorative exterior insulation panels with its excellent applicability and versatility, has become the preferred material in the field of modern construction. It is not only suitable for traditional buildings such as sentry booths, modern villas, light steel workshops, but also perfectly integrated into the transformation of building exterior walls, garbage sorting rooms, integrated houses and residential and other diverse scenes, showing its wide application prospects and unlimited creative possibilities.

Feature of sandwich panel
- Decorative exterior insulation panels have excellent insulation effect, warm in winter and cool in summer.
- Sound insulation effect is good, convenient life.
- The highest fire rating is B1.
- Light weight, rigid,strong and long time durable.
- Waterproof, moisture resistance,excellent weather ability.
- Chemical resistance, anti-impact,fade resistance.
- Environmental friendly,recyclable,washable,non-toxic.
- Easy to fabricate,custom-made cut shape.
- Capacity: 500000 square meters per month; Prompt delivery; Factory Direct Selling.
Packing & Shipping

For the packaging of polyurethane sandwich panels, we will use corrugated boxes to ensure that the wall panels will not be damaged during transportation and handling. The following are some common packaging methods for polyurethane sandwich panels:
- Corrugated box packaging: Generally, ten wall panels will be stacked in a box and tied with PP strapping to ensure that the polyurethane sandwich panels are not damaged by moisture and other environmental factors.
- Pallet packaging: The polyurethane sandwich panels are placed on wooden pallets and fixed with straps or shrink film. This packaging method will be more expensive and can be selected according to customer needs.
- Customized packaging: In some cases, insulated metal sandwich panels may require customized packaging to meet specific transportation or handling requirements. This may require the use of specialized boxes, lids, or other types of packaging materials.
FAQ
Hot Tags: decorative exterior insulation panels, China decorative exterior insulation panels manufacturers, suppliers, factory, Architectural Metal Siding Panels, House Exterior Decorative Panels, Outdoor Decorative Wall Sandwich Panels, Outside Wall Insulation Panels, PU Polyurethane Sandwich Panel, White Interior Wall Decorative Board
|
Product name |
Decorative Exterior Insulation Panels |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
Customized according to your requirements |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Package size |
Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton) |
|
Container load |
20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m). |
|
Warranty |
>5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
|
Brand |
Xinzhong |
