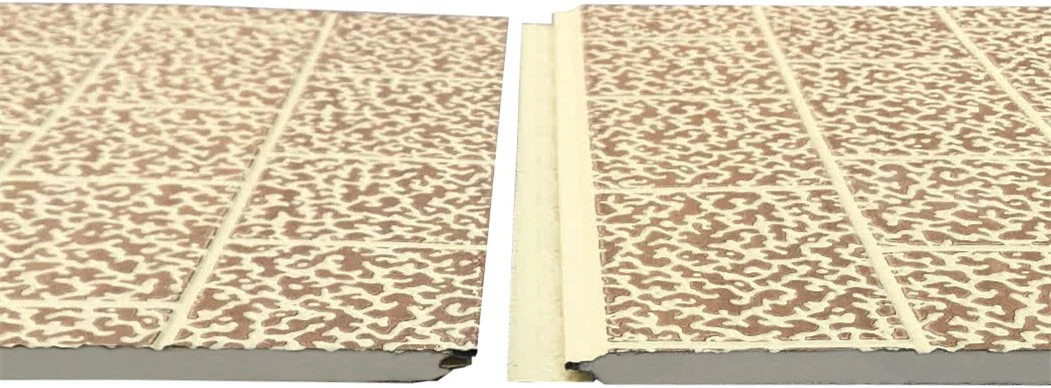

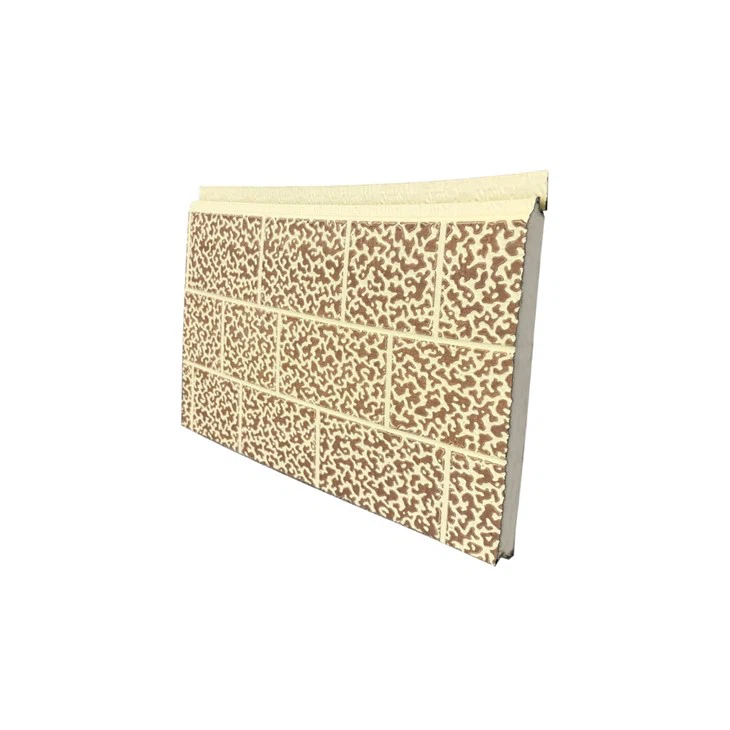

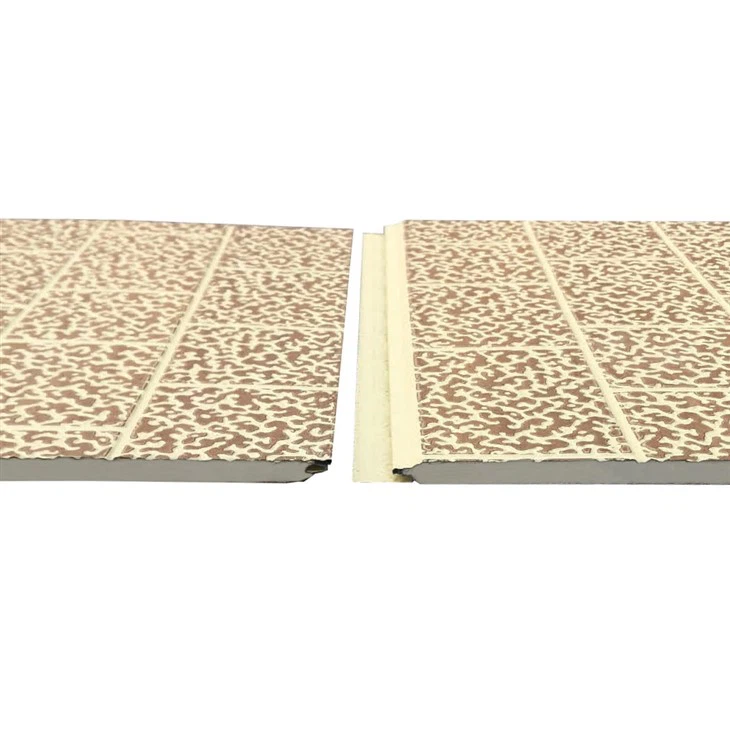

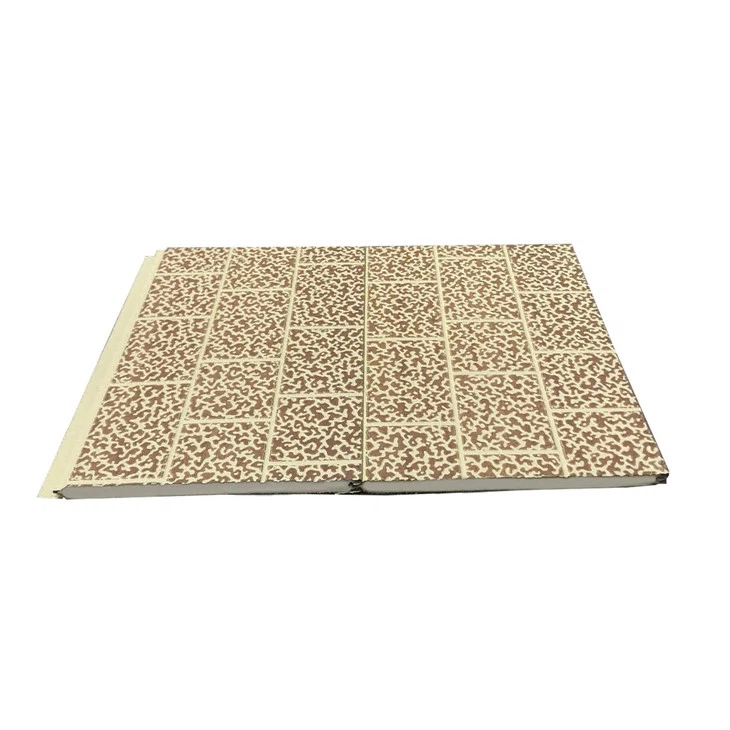

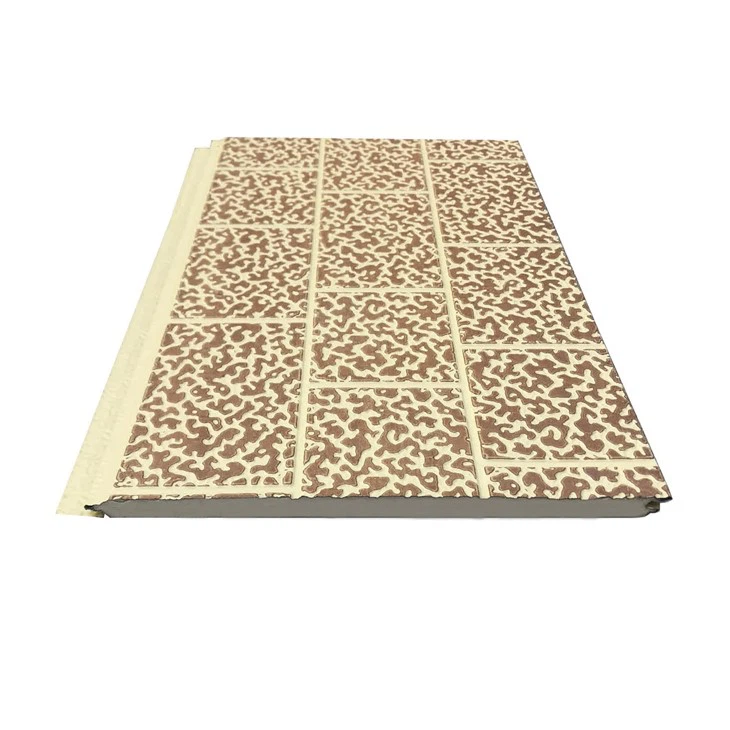

Sound Proof Sandwich Wall Panel
Width: 383mm
Length:Can be customized
GSM:2600-5100g/m²
Pattern: Contact us for catalogue.
Description
Technical Parameters
Sound proof sandwich wall panel can be used in external wall insulation, public facilities construction, residential villa decoration, guard box, mobile house, public toilet and other fields.
It is widely use in many fields like the following
Sound proof sandwich wall panel can be applied to the roofs and external walls of public buildings with large space needs, such as: airport station waiting or waiting halls, stadiums, theaters and auditoriums, exhibition halls and exhibitions, museums, etc.
Feature of sound proof sandwich wall panel
Production of sound proof sandwich wall panel
Packing & Shipping
FAQ
Hot Tags: sound proof sandwich wall panel, China sound proof sandwich wall panel manufacturers, suppliers, factory, Corrugated Aluminum Siding Panels, Exterior Foam Insulation Panels, External Wall Sandwich Panel, Polyurethane Composite Board, Prefab Insulated Interior Wall Panels, Wood Grain Metal Siding
|
Product name |
Sound proof sandwich wall panel |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
1-6000mm |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Package size |
Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton) |
|
Container load |
20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m). |
|
Warranty |
＞5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
|
Brand |
Xinzhong |
