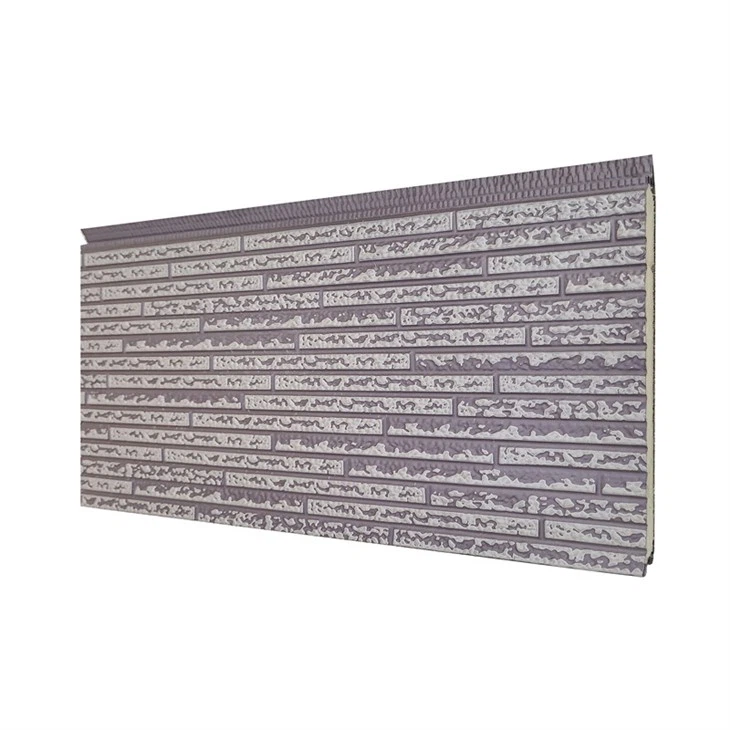

Polyurethane Insulation Panels

Name: China Polyurethane Insulation Panels Manufacturers and Suppliers - Factory Direct Price - Xinzhong Materials
Brand: Xinzhong
SKU: 265901746

Thickness:9mm,14mm, 16mm, 20mm, 25mm, 30mm.
Width: 383mm
Length:Can be customized
GSM:2600-5100g/m²
Pattern: Contact us for catalogue.

Send Inquiry

Description

Technical Parameters

Polyurethane Insulation Panels manufacture1

Polyurethane insulation panels fire retardant, effective barrier fire and does not produce toxic gases.

product-1266-845

product-1266-946

It is widely use in many fields like the following

Polyurethane insulation panels can be used in public Spaces, such as the walls or ceilings of airports, subway stations, theaters and other places to create an artistic atmosphere.

product-954-530

Feature of polyurethane insulation panels

1. Low thermal conductivity polyurethane sandwich plate composite plate has small thermal conductivity and good thermal insulation performance.

2. Beautiful plate shape and easy installation.

3. Polyurethane sandwich panel has good fire resistance.

4. Polyurethane sandwich board non-toxic and tasteless.

5. Wide temperature range.

6. Waterproof and moisture-proof.

Production of polyurethane insulation panels

product-954-530

Packing & Shipping

product-1263-703

FAQ

Q: Why choose XinZhong?

A: High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards and have 8 years experience in overseas export.
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.

Q: Could I order one piece for sample to test the quality?

A: Yes, We recommend checking the sample before order. You could order the sample before your order.

Q: May I have your catalogue and price list for trial order in MOQ quantity?

A: Of course, please contact us for catalogue and price list at any time.

Q: What are my payment options?

A: For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.

Hot Tags: polyurethane insulation panels, China polyurethane insulation panels manufacturers, suppliers, factory, Black Sandwich Panel, External Wall Sandwich Panel, Flame Resistant PU Panel, PU Corrugated Sandwich Panel, sandwich wall panel, Thermal Wall Panels

Product name	Polyurethane insulation panels
Thickness	9mm, 14mm, 16mm, 20mm, 25mm, 30mm
Width	38.3cm
Length	1-6000mm
Surface layer	Galvanized steel sheet
Steel coating	HDP, >30µm
Core materials	Polyurethane, 42kg/m³
Closed cell rate	>95%
Bottom material	Aluminum foil
Thickness of bottom material	0.26mm
R-VALUE	0.55㎡*k/w
Heat conductivity	0.024w/m*k(in theory)
Certificate	ISO9001,CE
Fire resistance level	B1/B2
Size tolerance	=/-2mm
Tensile bond strength	0.17MPA
Wind load value	9KPA
Package	corrugated box, 10 pieces/carton
Package size	Length(0-6m)Width42mmHeight(90mm-300mm), (10 pieces per carton)
Container load	20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m).
Warranty	＞5years
After-sale service	Respond quickly, communicate patiently, proactively solve problems and provide technical support.
Port of loading	Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou.
Brand	Xinzhong
