Metal Insulated Sandwich Panel
Width: 383mm
Length: Can be customized
GSM: 2300-3200g/m²
Description
Technical Parameters

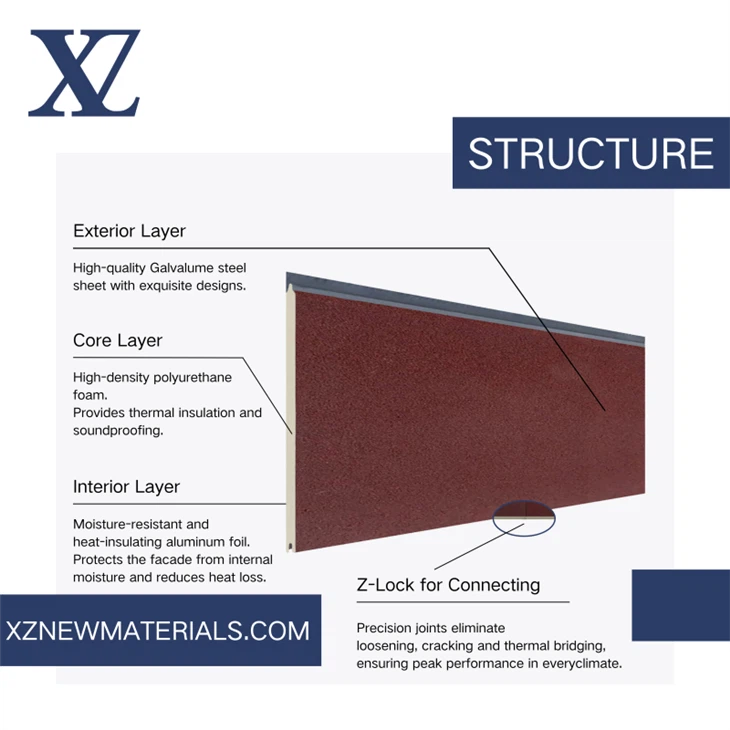

The construction of metal insulated sandwich panel is not affected by seasons. The surface of the carved panels is a colored embossed metal panel that has been treated with a coating.
It is widely use in many fields like the following
- Prefabricated houses: Metal insulated sandwich panels can be used to quickly and easily build prefabricated houses.
- Industrial buildings: Construction of factories, warehouses and other industrial buildings.
- Commercial buildings: Construction of shopping malls, exhibition halls and other commercial buildings.
- Sports facilities: Construction of gymnasiums, stadiums and other sports facilities.
FAQ
Hot Tags: metal insulated sandwich panel, China metal insulated sandwich panel manufacturers, suppliers, factory, Color Steel Sandwich Panel, Corrugated Aluminum Siding Panels, Decorative Thermal Insulation Panels, Exterior Insulation Wall Panels, PU Interior Wall Panel, PU Polyurethane Sandwich Panel
|
Product name |
Metal Insulated Sandwich Panel |
|
Thickness |
9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
|
Width |
38.3cm |
|
Length |
Customized according to your requirements |
|
Surface layer |
Galvanized steel sheet |
|
Steel coating |
HDP, >30µm |
|
Core materials |
Polyurethane, 42kg/m³ |
|
Closed cell rate |
>95% |
|
Bottom material |
Aluminum foil |
|
Thickness of bottom material |
0.26mm |
|
R-VALUE |
0.55㎡*k/w |
|
Heat conductivity |
0.024w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Tensile bond strength |
0.17MPA |
|
Wind load value |
9KPA |
|
Package |
10Pieces/Carton, 8Pieces/Carton |
