Metal Carved Board With Factory Price
video

Metal Carved Board With Factory Price

Polyurethane sandwich panels are available in the following sizes: Thickness:- 9mm, 14mm, 16mm, 20mm, 30mm: These thicknesses are suitable for various building requirements, such as factories, warehouses, Old house renovation Effective Width:- 1000mm, 1120mm, 1150mm: Widths vary depending on the application and structural design. Length:- Customized lengths can be tailored based on project requirements, generally ranging from 1 to 11.8 meters. Metal Panel Thickness:- 0.4mm-0.8mm: The upper steel plate thickness is typically 0.5mm-0.8mm, and the lower steel plate thickness is 0.4mm-0.7mm. Other Specifications:- Core Material Density: 38-45kg/m³. - Fire Rating: B1 or B2.
Send Inquiry

Description

Technical Parameters

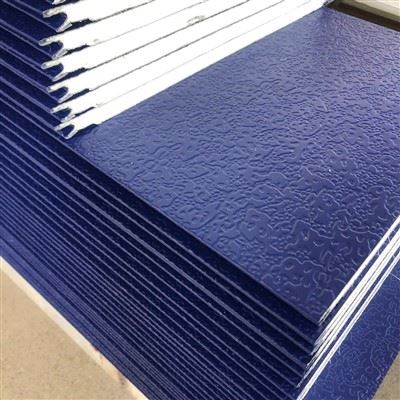

Decorative Insulation Sandwich Panels

Metal carving decoration and heat preservation integrated board for inner and outer walls is not only suitable for the heat preservation and decoration of the external walls of newly-built brick concrete structure, frame structure, steel structure, light body room and other types of buildings, but also suitable for the decoration and energy saving transformation of existing buildings, as well as indoor and outdoor decoration.

There are more than 100 combinations of embossed patterns and colors. The luxurious and beautiful decorative effect makes the building highlight the taste and grade. The simple and flexible disassembly method makes it easy to replace the wall design and match. The board is not only suitable for the thermal insulation decoration of the exterior walls of newly built brick-concrete layouts, frame structures, steel structures, lightweight houses, etc. but also for the decoration and energy-saving renovation of existing buildings, as well as indoor and outdoor decoration.



comparison of product parameters
Products name Metal Carved Panel  Production Line System integration/Automatic Production Line
Products model OEM patterns Color  OEM Color
Products material PU Core  Material Metal+PU Foam+Aluminum Foil
Thickness 14mm,16mm,20mm,30mm Steel coating HDP,>30um
Width 383mm Exodermis Galvalume steel plate
Core material >Polyurethane,40kg/m³ Closed cell rate >95%
The thickness of the bottom material 0.24-0.27mm Certificate ISO CE
Fire resistance level B1/B2 Size Tolerance -/+2mm
Package 10 pieces/cartons Sample Free Sample
Payment TT,LC Port Any Port in China
After-sale Service Online training and online technical support Factory  Own Factory
Country of origin Shandong, China Patterns Contact for OEM



Our production and equipment

Our free service hotline: +86 13964150471

modular-1

15

years



We have been working in the industry since 2010

32

Countries export



We have obtained most of the professional certificates in the industry and insist on international standards of production.

18

awards



We have won a lot of awards for strong creativity




FAQ

Q: Q:What's the delivery time of your products?

A: A: Within 3 days for delivery 1*40'HQ container after PO confirmed on both sides.
Q: What's the payment terms?
A: T/T 30% deposit 70% against BL copy ;  L/C
Q: Are you factory or trading company?
A: We're factory, and can do exporting ourselves and trading others if you want LCL.
Q:How's your capacity in your workshop?
A: We have 6 production lines in our workshop, can ship 60 *40'HQ containers of FRP Corrugated Sheet within 1 month.
