Description
Technical Parameters

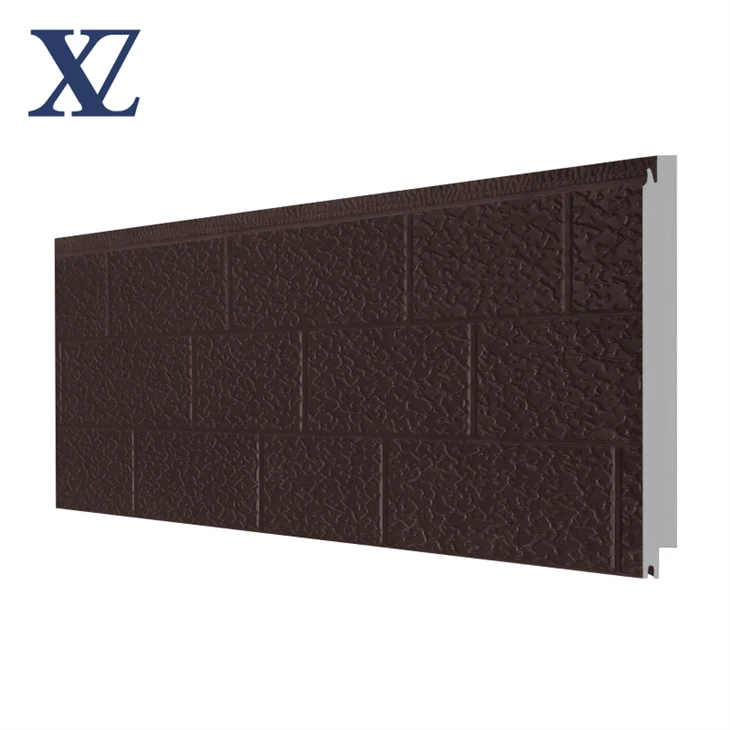

EPS composite panels are also known as fire honeycomb insulation board, it is made of molded polystyrene foam board processing. EPS composite panel not only has the characteristics of ordinary insulation board, but also enhances its flame retardant.
It is widely use in many fields like the following
EPS composite panels are mainly used for building walls, roof insulation, composite panel insulation, cold storage, air conditioning, vehicle, ship thermal insulation, floor heating, decoration carving and other uses are very wide.

Feature of EPS composite panels
1. EPS composite panels can protect the main structure of the building and extend the life of the building
2, EPS composite panels can make the wall tide temperature is improved, the general internal insulation need to set a steam insulation layer, and the use of external insulation insulation material is much stronger than the main structure, in the wall generally does not occur condensation phenomenon, the structure of the entire wall body temperature increases to further enhance the wall insulation performance.
3. EPS composite panels are conducive to the stability of room temperature, the use of external wall external insulation, because the structural layer of the wall with large heat storage capacity is inside the wall, which is conducive to the stability of room temperature.
4. EPS composite panels can increase the use area of the house. It can avoid the destruction of the insulation layer by the second decoration
Production of EPS composite panels

Packing & Shipping

FAQ
Hot Tags: eps composite panels, China eps composite panels manufacturers, suppliers, factory, 50mm EPS Sandwich Panel, 70mm EPS Sandwich Panel, EPS Composite Panels, EPS Foam Sandwich Panel, eps sandwich panel, EPS Sandwich Wall Panel
|
Product name |
EPS composite panels |
|
Thickness |
50mm, 70mm. |
|
Width |
38.3cm |
|
Length |
1-6000mm |
|
Surface layer |
Galvanized steel sheet |
|
Core materials |
EPS, 10kg/m³-30kg/m³ |
|
Bottom material |
Aluminum foil |
|
Operating temperature Range |
-50℃-70℃ |
|
Heat conductivity |
0.035-0.04w/m*k(in theory) |
|
Certificate |
ISO9001,CE |
|
Fire resistance level |
B1/B2 |
|
Size tolerance |
=/-2mm |
|
Sound insulation property |
20-30dB |
|
Wind load value |
100KPA |
|
Package |
corrugated box, 10 pieces/carton |
|
Warranty |
>5years |
|
After-sale service |
Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
|
Port of loading |
Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
|
Brand |
Xinzhong |
